What Are Euler Angles?

Imagine you have a toy airplane, and you want to tell someone exactly how it's positioned in the air – not just where it is, but which way its nose is pointing, how much its wings are tilted, and if it's spinning. That's where Euler angles come in! They are a way to describe the **orientation** (or attitude) of any rigid object in three-dimensional space using just three numbers, which are angles. These angles were introduced by the brilliant Swiss mathematician Leonhard Euler in the 18th century. Before Euler, describing complex 3D movements was much harder. He found a clever way to break down any complicated rotation into a sequence of three simpler rotations around specific axes. Think of it like giving three precise instructions: "first, turn this way; second, tilt that way; third, spin a bit." After these three steps, your object will be in its final desired orientation. Euler angles are incredibly useful because they provide a compact and intuitive way to understand how things are oriented. Instead of using complex mathematical matrices, which can be hard to visualize, Euler angles give us a human-understandable set of rotations. They are fundamental in many fields, from understanding how planets wobble to controlling robots and designing video game graphics. However, it's important to remember that there isn't just one single set of Euler angles. There are different "flavors" or conventions, depending on which axes you choose for your rotations and in what order. This means that whenever you encounter Euler angles, it's crucial to know which specific convention is being used to avoid confusion.

How Euler Angles Work

Euler angles describe a 3D orientation by performing a sequence of three **elemental rotations**. Imagine you have two coordinate systems: a fixed one (like the room you're in, with x, y, z axes that don't move) and a moving one (attached to your object, with X, Y, Z axes that move with it). Euler angles tell you how to get the moving system from being perfectly aligned with the fixed system to its final orientation. There are two main ways these rotations can be applied: * **Intrinsic Rotations**: The rotations happen around the axes of the *moving* coordinate system. After each rotation, the axes themselves change their direction, and the next rotation is applied around one of these *new* axes. * **Extrinsic Rotations**: The rotations happen around the axes of the *fixed* coordinate system. No matter how the object rotates, the axes you're rotating around always stay in their original, fixed positions. While the math looks different, a specific sequence of intrinsic rotations can always achieve the same final orientation as a specific sequence of extrinsic rotations, just with the angles applied in a different order.

Geometrical Definition (Proper Euler Angles)

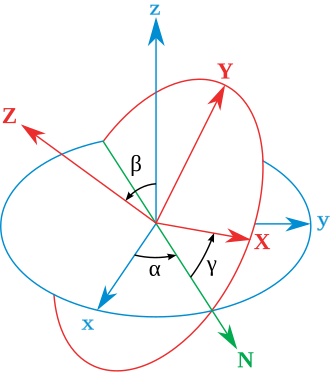

The original, or "proper," Euler angles are often defined geometrically. This method helps visualize the rotations by introducing an intermediate line called the **line of nodes**. 1. **First Rotation (α or φ)**: Imagine your object's X, Y, Z axes are perfectly aligned with the fixed x, y, z axes. The first rotation is around the fixed **z-axis** by an angle α. This turns the object horizontally. After this, the object's X and Y axes are now in new positions, let's call them x' and y'. The line of nodes (N) is often defined as this new x'-axis. 2. **Second Rotation (β or θ)**: Now, the second rotation happens around this **line of nodes (x'-axis)** by an angle β. This rotation tilts the object up or down, changing its inclination. This is the angle between the original z-axis and the object's final Z-axis. 3. **Third Rotation (γ or ψ)**: Finally, the third rotation is around the object's **new Z-axis** (which was established by the second rotation) by an angle γ. This rotation spins the object around its own axis. This sequence (often Z-X'-Z'' for intrinsic, or Z-X-Z for extrinsic) is one of the most common "proper" Euler angle conventions. The key characteristic of proper Euler angles is that the first and third rotation axes are the same (e.g., both around the Z-axis, but one is the fixed Z and the other is the object's Z).

Intrinsic Rotations (Example: Z-X'-Z'')

Let's walk through an example of intrinsic rotations, which are very common in physics and engineering. We start with the object's coordinate system (X, Y, Z) perfectly aligned with the fixed coordinate system (x, y, z). 1. **Rotation 1 (α) around the z-axis**: The object rotates around the fixed z-axis by angle α. Its own X and Y axes move to new positions, let's call them x' and y'. The Z-axis remains aligned with z. 2. **Rotation 2 (β) around the x'-axis**: Now, the object rotates around its *new* x'-axis (which was just created in step 1) by angle β. This rotation tilts the object. Its Y and Z axes move to new positions, y'' and z''. The x'-axis remains in place. 3. **Rotation 3 (γ) around the z''-axis**: Finally, the object rotates around its *new* z''-axis (which was just created in step 2) by angle γ. This is like spinning the object around its own tilted axis. After these three steps, the object is in its final orientation. The axes used for rotation change with each step, which is the hallmark of intrinsic rotations.

Extrinsic Rotations (Example: Z-X-Z)

Extrinsic rotations are simpler to conceptualize because the axes you rotate around *never move*. They always refer back to the original, fixed coordinate system. 1. **Rotation 1 (α) around the fixed z-axis**: The object rotates around the original z-axis by angle α. 2. **Rotation 2 (β) around the fixed x-axis**: The object then rotates around the original x-axis by angle β. 3. **Rotation 3 (γ) around the fixed z-axis**: Finally, the object rotates around the original z-axis again by angle γ. Notice that in extrinsic rotations, the order of applying the angles is often reversed compared to intrinsic rotations to achieve the same final orientation. For example, an intrinsic Z-X'-Z'' sequence corresponds to an extrinsic Z-X-Z sequence where the angles are applied in the order γ, β, α.

Types of Euler Angle Sequences

There are 12 possible sequences of rotation axes for Euler angles, divided into two main groups: * **Proper Euler Angles**: These sequences have the first and third rotation axes being the same (e.g., Z-X-Z, X-Y-X, Y-Z-Y). They are often used in physics to describe the motion of spinning tops or spacecraft. * **Tait-Bryan Angles**: These sequences use three different axes (e.g., X-Y-Z, Y-Z-X, Z-X-Y). They are also known as Cardan angles, nautical angles, or by the terms **yaw**, **pitch**, and **roll**, which are commonly used in aviation and robotics. It's crucial to always specify which sequence (e.g., Z-Y-X) and whether the rotations are intrinsic or extrinsic when discussing Euler angles, as different conventions will lead to different results for the same set of angles.

Key Concepts and Properties

Understanding Euler angles involves more than just knowing the rotation sequences. Several important concepts define their behavior and limitations.

Conventions and Ranges

* **Right-Hand Rule**: Angles are typically defined using the **right-hand rule**. If you point the thumb of your right hand along the positive direction of an axis, your curled fingers indicate the direction of a positive rotation. * **Angle Ranges**: * The first and third angles (α and γ, or yaw and roll) usually range from -π to π radians (or -180° to 180°). * The second angle (β or pitch) typically ranges from 0 to π radians (or 0° to 180°) for proper Euler angles, or -π/2 to π/2 radians (-90° to 90°) for Tait-Bryan angles. These ranges ensure that every unique orientation can be represented, though some orientations might have multiple angle combinations.

Gimbal Lock

One of the most significant challenges with Euler angles is a phenomenon called **gimbal lock**. This occurs when two of the rotation axes become aligned during the rotation sequence. When this happens, the system loses a degree of freedom, meaning it can no longer rotate independently around all three axes. Imagine a camera mounted on a gimbal system (a series of rotating rings). If you pitch the camera straight up or straight down (90 degrees), the first and third rotation axes of the gimbal become parallel. At this point, rotating around the first axis has the exact same effect as rotating around the third axis. You've effectively lost one of your independent rotation controls. This can lead to sudden, unpredictable jumps in angle values and makes it impossible to achieve certain orientations smoothly. Gimbal lock is a mathematical singularity inherent to Euler angles, not a mechanical failure.

Proper Euler Angles vs. Tait-Bryan Angles

While both are types of Euler angles, their applications often differ: * **Proper Euler Angles** (e.g., Z-X-Z): These are often used in theoretical physics, such as describing the precession and nutation of a spinning top or the orientation of molecules. The symmetry of having the first and third axes the same can simplify certain mathematical analyses. * **Tait-Bryan Angles** (e.g., X-Y-Z, often called Yaw-Pitch-Roll): These are more intuitive for describing the orientation of vehicles like airplanes, ships, or robots. * **Yaw**: Rotation around the vertical axis (like turning left or right). * **Pitch**: Rotation around the lateral axis (like tilting the nose up or down). * **Roll**: Rotation around the longitudinal axis (like tilting the wings left or right). Because these angles directly correspond to common movements, they are widely adopted in engineering.

Relationship to Other Rotation Representations

Euler angles are just one way to represent 3D rotations. Other common methods include: * **Rotation Matrices**: These are 3x3 matrices that can transform coordinates from one system to another. They are robust and don't suffer from gimbal lock, but they are less intuitive to visualize. * **Quaternions**: These are four-component numbers that also represent rotations. They are very efficient for computations, avoid gimbal lock, and are widely used in computer graphics and aerospace. However, they are even less intuitive than Euler angles for humans to understand directly. While rotation matrices and quaternions are often preferred for internal calculations in computer systems due to their mathematical properties, Euler angles remain popular for user input and human-readable output because of their direct connection to physical rotations.

Discovery and History

The concept of Euler angles was developed by the brilliant Swiss mathematician and physicist Leonhard Euler (1707–1783). Euler was one of the most prolific mathematicians in history, contributing to almost every area of mathematics and physics. He introduced these angles in his 1765 treatise, "Theoria motus corporum solidorum seu rigidorum" (Theory of the Motion of Rigid Bodies). At the time, scientists were deeply interested in understanding the complex motions of celestial bodies, such as the Earth's precession (a slow wobble of its axis) and nutation (smaller, nodding motions). Describing these motions required a robust mathematical framework for rigid body dynamics. Euler's insight was to realize that any arbitrary orientation of a rigid body could be achieved by a sequence of three successive rotations around specific axes. This was a groundbreaking simplification that made the analysis of rigid body motion much more tractable. For a long time, Euler angles were primarily used in theoretical physics and astronomy. However, as technology advanced, especially with the advent of flight and complex machinery, the need for practical ways to describe orientation became critical. In the late 19th century, Peter Guthrie Tait, a Scottish mathematical physicist, and George H. Bryan, an English mathematician, independently developed and popularized a slightly different set of angles, now known as **Tait-Bryan angles**. These angles, often referred to as yaw, pitch, and roll, were particularly well-suited for describing the orientation of ships and aircraft because they directly corresponded to the intuitive movements of these vehicles. Unlike Euler's original "proper" angles, Tait-Bryan angles use three *different* rotation axes in sequence (e.g., X-Y-Z), which made them more practical for engineering applications. Over time, the term "Euler angles" became a general umbrella term, sometimes encompassing both the original proper Euler angles and the Tait-Bryan angles. The choice between them often depends on the specific application and the conventions established within a particular field. Despite the later development of alternative rotation representations like quaternions, Euler angles have remained a fundamental concept due to their intuitive nature and historical significance.

Real-World Applications

Euler angles, in their various forms, are incredibly versatile and are used in countless real-world applications where understanding and controlling 3D orientation is crucial. * **Aerospace and Aeronautics**: This is one of the most prominent applications. Pilots and flight control systems use **yaw**, **pitch**, and **roll** (Tait-Bryan angles) to describe and control the orientation of aircraft. Yaw controls the left-right turning, pitch controls the nose-up/nose-down movement, and roll controls the banking of the wings. Similarly, spacecraft use these angles for attitude control, ensuring antennas point correctly or solar panels face the sun. * **Robotics**: Robots need to know their orientation to perform tasks accurately. Euler angles are used to define the orientation of robot arms, grippers, and mobile platforms. For example, a robotic arm picking up an object needs to orient its end-effector precisely in 3D space. * **Computer Graphics and Animation**: In video games, movies, and virtual reality, Euler angles are used to orient cameras, characters, and objects. Animators use them to define key poses, and game engines use them to calculate how objects move and interact in a 3D environment. While quaternions are often used for internal calculations to avoid gimbal lock, Euler angles are frequently the interface for artists and designers due to their intuitive nature. * **Navigation Systems**: Inertial Navigation Systems (INS) in aircraft, submarines, and missiles use gyroscopes and accelerometers to track changes in orientation. The output of these systems is often expressed in terms of Euler angles to provide a clear understanding of the vehicle's attitude. * **Virtual Reality (VR) and Augmented Reality (AR)**: Head-mounted displays in VR and AR track the user's head movements. Euler angles are used to translate these movements into changes in the virtual camera's orientation, allowing users to look around virtual worlds naturally. * **Vehicle Dynamics**: In automotive engineering, Euler angles help describe the orientation of a car during maneuvers, turns, and bumps. This information is vital for designing suspension systems, stability control, and simulating vehicle behavior. * **Physics and Engineering Analysis**: Beyond aerospace, Euler angles are used in various fields of physics to describe the orientation of rigid bodies. This includes analyzing the motion of satellites, the dynamics of spinning machinery, and even the orientation of molecules in materials science. * **Sports Science**: In biomechanics, Euler angles can be used to analyze the movement of human joints and limbs during athletic activities, helping to improve performance or prevent injuries.

Current Research and Future

While Euler angles have been around for centuries, they continue to be a subject of study and application, especially in how they interact with newer technologies and computational methods. One major area of ongoing research revolves around **mitigating the effects of gimbal lock**. Although quaternions and rotation matrices are often used internally in systems to avoid this singularity, Euler angles remain popular for human interaction and interpretation. Researchers are developing more robust algorithms that can smoothly transition through or around gimbal lock situations when converting between Euler angles and other representations, or when using Euler angles directly in control systems. This often involves adaptive control strategies or using redundant sensors to provide additional orientation data. Another active area is **sensor fusion** for orientation estimation. Modern devices, from smartphones to drones, integrate data from multiple sensors like accelerometers, gyroscopes, and magnetometers to determine their precise orientation. Euler angles are frequently used as the output format for these sensor fusion algorithms, providing an easily understandable representation of the device's attitude. Research focuses on improving the accuracy, stability, and computational efficiency of these fusion algorithms, especially in challenging environments where sensor data might be noisy or unreliable. In the field of **machine learning and artificial intelligence**, Euler angles play a role in training models that deal with 3D spatial data. For example, in robotics, AI models might learn to predict the optimal orientation for a robot arm to grasp an object, with Euler angles being part of the input or output data. While neural networks often prefer quaternion representations for their mathematical properties, the ability to convert to and from Euler angles remains essential for practical applications and human interpretability. Furthermore, as **virtual reality, augmented reality, and robotics** become more sophisticated, the demand for precise and intuitive orientation control grows. Future research will likely explore new ways to interact with and visualize 3D orientations, potentially combining the intuitive nature of Euler angles with the mathematical robustness of quaternions in hybrid systems. This could lead to more natural user interfaces for controlling complex 3D movements and more efficient ways for robots to navigate and manipulate objects in dynamic environments. Finally, the educational aspect of Euler angles continues to evolve. With advanced visualization tools and interactive simulations, students can now explore the concepts of 3D rotation and gimbal lock more effectively, making this fundamental topic more accessible to a new generation of scientists and engineers.
