What is it?

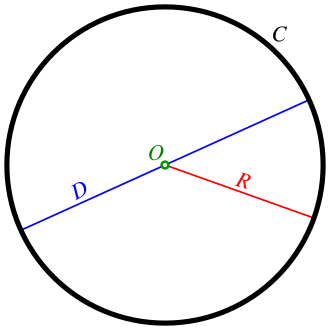

A disk (or disc) is the set of all points in a plane that lie inside a circle. Think of it as the round, flat area you get when you color in a circle. The circle itself is just the boundary; the disk includes everything inside that boundary.

There are two types: an open disk does not include the boundary circle, while a closed disk does. In mathematics, we often write an open disk as D_r and a closed disk as D̅_r (with a bar over the D). In topology, the closed disk is usually called D², and the open disk is called int D² (the interior of the disk).

The disk is one of the simplest and most important shapes in mathematics. It appears everywhere from basic geometry to advanced topology, and even in real-world fields like urban planning and physics.

For a disk of radius r, its area is πr². This formula is one of the first things students learn about circles, but it actually describes the area of the disk, not the circle itself.

Key Facts

A disk is the region bounded by a circle.
An open disk excludes the boundary; a closed disk includes it.
The area of any disk (open or closed) with radius r is πr².
In Cartesian coordinates, an open disk centered at (a,b) with radius R is {(x,y): (x−a)² + (y−b)² < R²}.
A closed disk uses ≤ instead of <.
Every continuous map from a closed disk to itself has at least one fixed point (Brouwer fixed-point theorem for n=2).
The open disk does not have this property; a counterexample exists.
Topologically, a closed disk is compact; an open disk is not.
Both open and closed disks are contractible, meaning they can be shrunk to a point.
The Euler characteristic of a disk is 1.
In statistics, a uniform distribution on a disk is used to model populations in a city.
The average distance between two random points in a unit disk is 128/(45π) ≈ 0.905.

Full Explanation

Geometry of the Disk

In geometry, a disk is defined as the set of points whose distance from a center point is less than (or less than or equal to) a given radius. This is a simple but powerful definition. The disk is symmetric in every direction—it has circular symmetry, meaning it looks the same no matter how you rotate it around its center.

The area of a disk is one of the most famous results in mathematics. It can be derived using integration or by the method of exhaustion used by ancient Greeks. The formula πr² is so well-known that it is often mistakenly attributed to the circle itself, but technically it belongs to the disk.

Topological Properties

Topology studies properties that are preserved under continuous deformations. From this viewpoint, the open disk and the closed disk are different: the closed disk is compact (every open cover has a finite subcover), while the open disk is not. However, they share many algebraic topological properties. Both are contractible, meaning they can be continuously shrunk to a single point. This implies that their fundamental group (which measures holes) is trivial, and all homology groups except the 0th are zero. The Euler characteristic, a number that describes shape, is 1 for both.

The Brouwer fixed-point theorem states that any continuous function from a closed disk to itself must have at least one point that stays fixed. This is true for any dimension, but the 2D case (the disk) is the easiest to visualize. For the open disk, the theorem fails: you can define a function that moves every point slightly to the right, so no point remains fixed.

Statistical Applications

In statistics, a uniform distribution on a disk is used when every point in the disk is equally likely. This is common in operations research, especially for modeling the location of people or resources within a circular city. The average distance between two random points in a unit disk is about 0.905, and the average squared distance is 1. These values are useful for planning services like emergency response or delivery routes.

If you have a fixed point at distance q from the center, the average distance from that point to a random point in the disk can be computed using elliptic integrals. This is more complex but has practical applications in urban planning and spatial statistics.

History

The concept of the disk dates back to ancient Greece. Mathematicians like Euclid and Archimedes studied circles and their areas. Archimedes famously proved that the area of a circle (and thus the disk) is equal to that of a right triangle with base equal to the circumference and height equal to the radius, leading to the formula πr².

In the 19th century, the formal distinction between open and closed sets emerged with the development of topology. Mathematicians like Georg Cantor and Henri Poincaré laid the groundwork for understanding properties like compactness and connectedness, which apply to disks.

The Brouwer fixed-point theorem was proved by L.E.J. Brouwer in 1911. It became a cornerstone of topology and has applications in economics, game theory, and differential equations. The disk is the simplest case where the theorem is nontrivial.

In the 20th century, the uniform distribution on a disk was studied in statistics and operations research. It appears in the work of researchers like John von Neumann and in the development of Monte Carlo methods, where random points in a disk are used for numerical integration.

Why it matters

The disk is a fundamental shape that bridges geometry, topology, and applied mathematics. Understanding its properties helps students grasp key concepts like area, compactness, and fixed points. The Brouwer fixed-point theorem, in particular, has deep implications in economics (e.g., proving the existence of Nash equilibria) and physics.

In real life, disks model everything from pizza to the coverage area of a cell tower. The statistical distribution on a disk helps city planners optimize the location of services like hospitals or fire stations. The average distance formulas are used in logistics and network design.

For students, the disk is a perfect example of how a simple idea can lead to rich mathematics. It shows how the same shape can be studied from many angles—geometric, topological, and statistical—and how each perspective reveals new insights.
